SQL formatting

One shortcut reflows the statement, or just the lines you've selected, in the mode and keyword case you choose.

select u.user_id,u.country,count(*) as total from `ace-analytics.warehouse.users` u join `ace-analytics.warehouse.events` e on u.user_id=e.user_id where u.is_active=true and e.event_date>='2024-01-01' group by u.user_id,u.country order by total desc limit 100

SELECT
u.user_id,
u.country,
count(*) AS total
FROM
`ace-analytics.warehouse.users` u JOIN `ace-analytics.warehouse.events` e ON u.user_id = e.user_id
WHERE u.is_active = true AND e.event_date >= '2024-01-01'
GROUP BY u.user_id, u.country
ORDER BY total DESC
LIMIT 100

Formatting a query

• Press ⇧⌘F (CtrlShiftF on Windows and Linux).

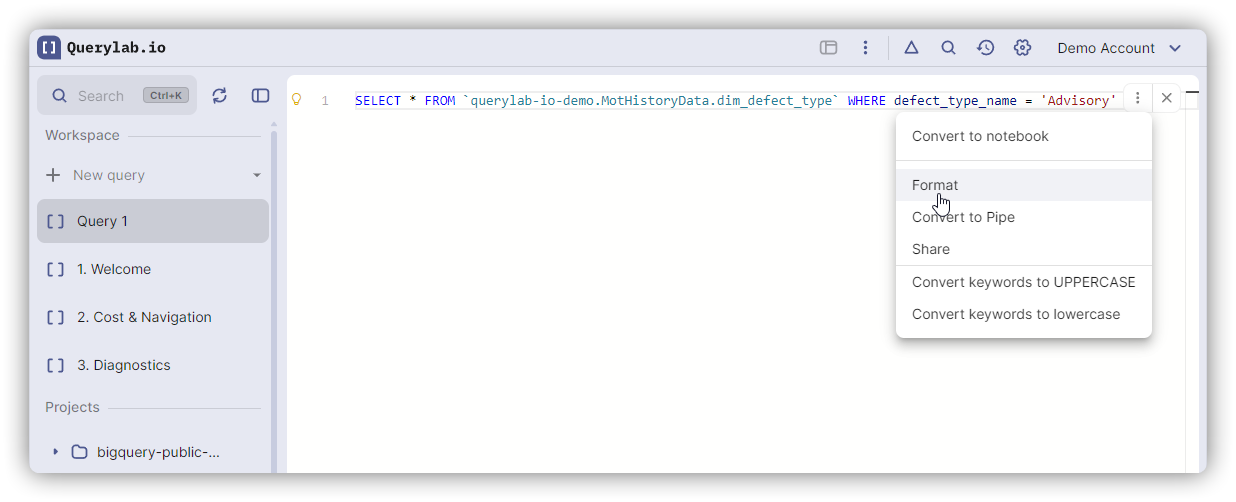

• Open the ⋮ menu at the top right of the editor and choose Format. The same command is Format SQL in the command palette and the right-click menu.

Formatting is one undo step: ⌘Z puts the original back. The cursor stays where it was. If the SQL is invalid, nothing changes.

Formatting only a selection

Select part of the statement and press the same shortcut: only the selection is reformatted, the rest is untouched.

WITH active AS (
select * from `ace-analytics.warehouse.users` where is_active=true
),
recent AS (
SELECT * FROM `ace-analytics.warehouse.events`
)
SELECT * FROM active

becomes

WITH active AS (
SELECT
  *
FROM `ace-analytics.warehouse.users`
WHERE is_active = true
),
recent AS (
SELECT * FROM `ace-analytics.warehouse.events`
)
SELECT * FROM active

Changing keyword case only

The two Convert keywords to … items in the ⋮ menu change keyword case without touching layout. Shortcuts: ⇧⌘U for UPPERCASE, ⌥⌘L for lowercase. Function names are left as written either way: count(*) stays count(*).

Choosing a formatting mode

Settings → Editor → SQL Formatting → Formatting Mode.

SELECT u.user_id,u.country,count(*) AS total FROM `ace-analytics.warehouse.users` u JOIN `ace-analytics.warehouse.events` e ON u.user_id=e.user_id WHERE u.is_active = true AND e.event_date >= '2024-01-01' GROUP BY u.user_id,u.country ORDER BY total DESC LIMIT 100

Tuning the output

All in Settings → Editor → SQL Formatting.

Three options aren’t about layout. Quote Identifiers on Always backticks every table and column name (`table`.`column`) and on Never strips them all; leave it on Preserve unless you know no identifier needs quoting. AS Keyword on Always writes id AS user_id for every alias and on Never writes id user_id. Pipe Operator Style applies to pipe syntax: Standard indents |> with the content, Left-Aligned puts |> at column 0 and indents the operator keywords.

Format on Type reformats as you go, for example after Enter. It’s off by default.
